Shot Blasting Wheels
   Blast Wheel Technologies

We have 4 different sizes of RLM blasting wheels, RLM Blast wheels are with bearing unit, and are belt driven.



1) 12" Dia. x 2.5" Width.

2) 15" Dia. x 2.5" Width.

3) 19.5" Dia. x 2.5" Width.

4) 21" Dia. x 5" Width.


We have 3 different sizes of Direct Drive Blasting Wheels.



1) 12" Dia. x 3" Width.

2) 15" Dia. x 3" Width.

3) 19.5" Dia. x 2.5" Width.

wheel blast equipment

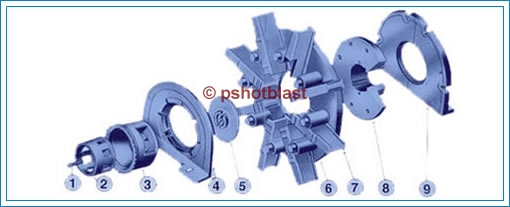

New RLM Wheel


1. Impeller Bolt 4. Control Cage Adaptor 7. Blade
2. Impeller 5. Centering Plate 8. Hub
3. Control Cage 6. Wheel 9. Hub Seal

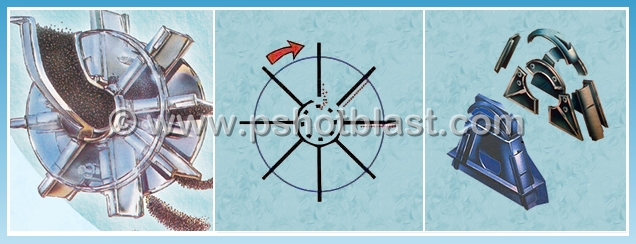

   Features and Benefits

  • Throwing more abrasive which means reduction in blasting time
  • Improved control of abrasive through and velocity due to new housing design.
  • Long blade life
  • Reduce Noise with soundabrator
  • Vibration reduction upto 50%
  • Elimination of  tapered lock bush on hub reduces vibration

   Specifications RLM Blast Wheel with bearing unit sytem:

Diameter 12" RLM
(300 mm)		 15" RLM
(380 mm)

19.5" RLM

(480 mm)

21" RLM

(525 mm)
HP 5 to 7.5 HP 10 to 20 HP 15 to 40 HP 40 to 100 HP


   Specifications Direct Drive Blast Wheel:

Diameter 12" Direct Drive
(300 mm)		 15" Direct Drive
(380 mm)

19.5" Direct Drive

(480 mm)
HP 5 to 20 HP 10 to 30 HP 15 to 50 HP
