Wire Rod Coil Shot Blast Machines

   Wire Rod Coil Shot Blasting Machines
Capacity : 1000 Kgs. To 2000 Kgs.
Size of wire :5.5 mm to 32 mm

wire shot blasting machine   Wire Rod Coils upto 2000 Kgs. are loaded on mandrils. It is ¬†shot blasted in 7-20 min. depending on wire diameter. ¬†Previously pickling took more than 2 hours for the same operation. Shot Blasting increases productivity, operation is simple requires minimum labour and space, For MS, carbon steel, and alloy steel wire rod completely substitute pickling process, and reduces pickling cost for stainless stee wire rod.

We offer following cpacity machine:



  1. 4 Blast Wheel Machines, 2000 mm Mandrill, Load Capacity 1000 Kgs.
  2. 7 Blast Wheel Machines, 3000 mm Mandrill, Load Capacity 1500 Kgs.
  3. 8 Blast Wheel Machines, 4000 mm Mandrill, Load Capacity 2000 Kgs.
  4. 9 Blast Wheel Machines, 5000 mm Mandrill, Load Capacity 2000 Kgs.

   Coil & Wire Shot Blast Machines diagram

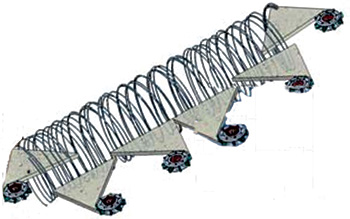

Fig1. Coil Blasting Machine

Figure 1 shows 6 wheel coil blast wire descaling machine. Acid free continuous batch operation single or double swing door, dual direction mandrel available 5,6 pr more wheels to suit product requirements.
