Paver Block Shot Blasting Machine

   Paver Blasting Machines

  Paver Block Shot Blasting Machine

Paver Block Shot Blasting technique is used to provide paver block surface rough texture. It provides dual advantage firstly architectural finish gives outstanding looks as a result of the textured surface and the exposed aggregates. Second ‘roughened’ surface has very good non-slip properties.

Expensive coloured face mix materials can be exposed in the shot-blasting process. Paver Block Shot Blasting process provides a ‘roughened’ surface which then has very good non-slip properties. With blocks it's normally only the top surface that is made rough using shot blasting, as the sides and base are not visible when laid, but with kerbs, the top and roadside face would be shot blasted and made rough.




Model 1: - 2 Blast Wheel Paver Block Shot Blasting Machine with 900 mm Belt Width

Blasting Principle of 2 Blast Wheel Paver Block Shot Blasting Machine



YouTube Video: http://youtu.be/FaVWxiHS4AE <---- Click Here To watch video




Model 2: - 1 Blast Wheel Paver Block Blasting Machine with 650 mm Belt Width

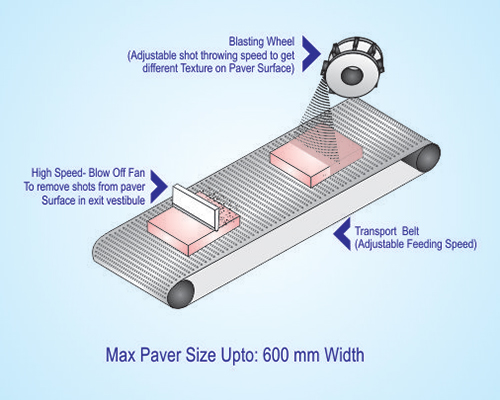

Blasting Principle of 1 Wheel Machine – 19.5 inch Diameter Wheel



YouTube Video: http://youtu.be/zjiAPaIoodg <---- Click Here To watch video




Shot Blasted Paver Blocks









Model



Blast wheel



Maximum Paver
Size



Belt
Width



Different Finish
Adjustment



Total
HP



1W (19.5 inch Dia Blasting Wheel





1 No.



Upto 600 mm
width paver



650 mm
Width



Yes Adjustable Roughness on paver Setting as per your requirement





35
HP



1W (15.5 inch Dia Blasting Wheel



2 Nos.



Upto 800 mm
width paver



900 mm
Width



Yes Adjustable Roughness on paver Setting as per your requirement



45
HP
